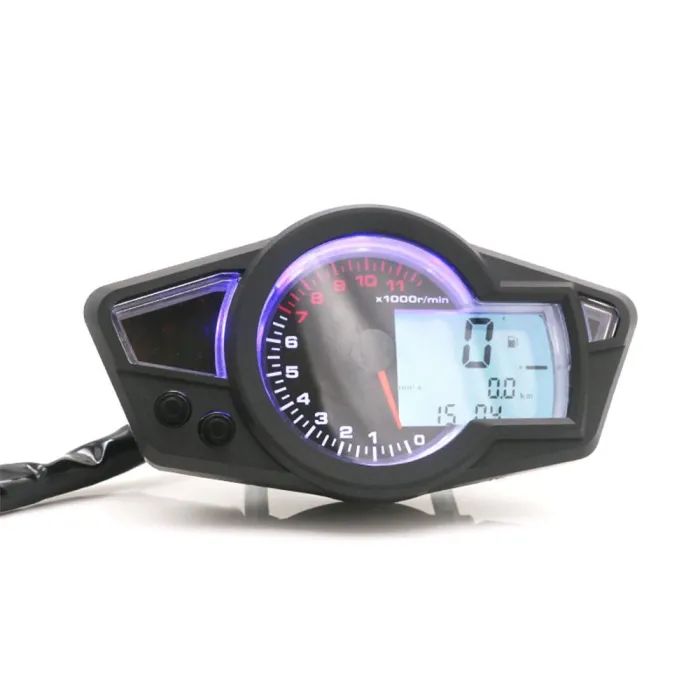

Digital odometer - speedometer for motorcycle with LED LCD display
44,95 €
.
- Digital odometer & speedometer
- Speed display(km/mph)
- RPM max display: 15000
- Blue LED backlight
- Maximum speed display: 199 km/h
- Fuel level table view
- Water temperature view
- Oil warning
- Shows time (hours & minutes )
- Waterproof
- Voltage : 12V
- Dimensions: ~ 16 x 8.5 x 4.2cm
Turvallinen maksu
Google Pay, Visa, Mastercard ja muut
Käsittely & ToimitusLähetetään
24–48 tunnin sisällä
Enkel retur
Opptil 14 dagers returrett
Wiring cable:
- Orange line:left turn signal light
- Light blue line:Right turn signal light
- Blue line:low-high beam indicates
- Blue and white wire: water temperature
- Yellow and white:gasoline sensing line
- Black and yellow line:speed (connected to the engine pulses)
- Red wire:Positive
- Green wire:negative
- Black wire:electric door lock switch (positive control off-line power door locks, can be directly connected to the positive of the fuel gauge )
- Green and yellow wire:handbrake parking indication
Do NOT wire the headlight if it has been modified to HID Xenon light. Instead, connect it to the headlight control wire.
0620 - AE32801692205
