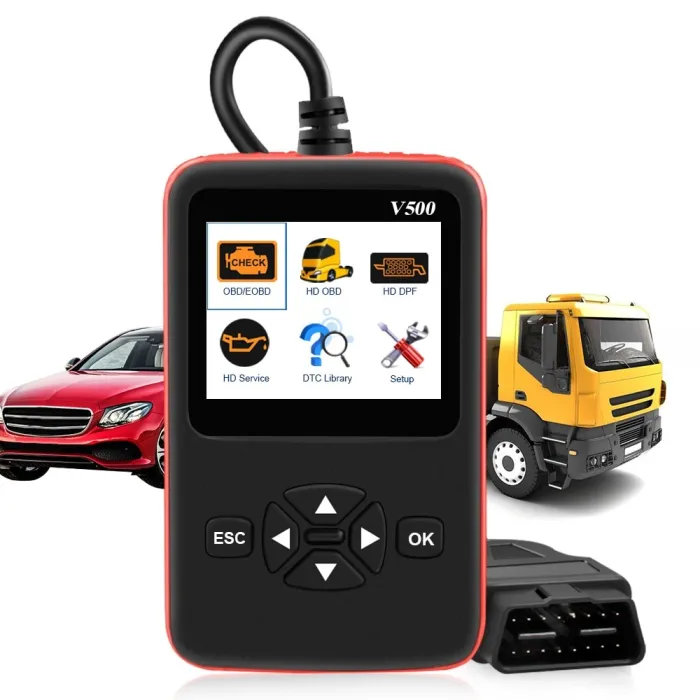

Car & truck OBD2 scanner - V500 HD code reader - dual-use - diagnostic tool
87,99 €
.
- OBD2 car scanner, V500 HD code reader.
- Control chip: LPC1765FBD100
- Working voltage: DC 9 ~ 30V
- Working current: 89mA
- Operating environment:- 20 ~ 65 ℃
- Storage temperature: -30 ~80 ℃
- Outline dimension: 138.9 * 85 * 22mm.
Sikker betaling
Google Pay, Visa, Mastercard og mer
Behandling & Frakt
Sendes innen 24–48 timer
Enkel retur
Opptil 14 dagers returrett
For cars:
- Support full 9 modes OBDII Diagnostics for cars
For trucks:
- Support universal truck multi-systems diagnosis
- Reads codes, erase code for trucks engine, ABS, brake, AIRBAG, transmission , EPS
- Sensor live data stream for multiple systems.
- Support DPF regeneration
- Support oil service light reset.
- Fuel multi-systems.
Supported protocols:
- SAE J1850 PWM (41.6 Kbaud)SAE J1850 VPW (10.4 Kbaud)ISO 9141-2 (5 baud init, 10.4 Kbaud)ISO 14230-4 KWP (5 baud init, 10.4 Kbaud) ISO 14230-4 KWP (fast init,10.4 Kbaud)
- ISO 15765-4 CAN (11bit ID,500 Kbaud)
- ISO 15765-4 CAN (29bit ID,500 Kbaud)
- ISO 15765-4 CAN (11bit ID,2500 Kbaud)
- ISO 15765-4 CAN (29bit ID,250 Kbaud)
- SAE J 1939ISO 17
1119 - AE32992358403
